We will use one GridView and its sorting event, then we write some code in that event for making name ascending and descending.

Initial chamber

Step 1

Open your Visual Studio 2010 and create an Empty Website, provide a suitable name (gridviewsorting_demo).

Step 2

In Solution Explorer you get your empty website, then add two web forms and a SQL Server Database as in the following.

For Web Form:

Autocomplete_demo (your empty website) then right-click then select Add New Item -> Web Form. Name it gridviewsorting_demo.aspx.

For SQL Server Database

gridviewsorting_demo (your empty website) then right-click then select Add New Item -> SQL Server Database. (Add a database inside the App_Data_folder).

DATABASE CHAMBER

Step 3

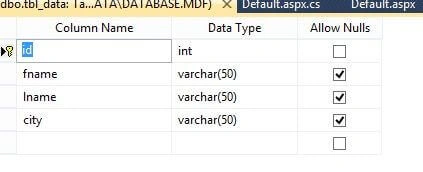

In Server Explorer, click on your database (Database.mdf) then select Tables -> Add New Table. Make the table like this.

Table tbl_data (Don't Forget to make ID as IS Identity -- True)


table design

Design chamber

Step 4

Now open your gridviewsorting_demo.aspx file, where we create our design for GridView sorting.

Gridviewsorting_demo.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7. <title></title>
  8. </head>
  9. <body>
  10. <form id="form1" runat="server">
  11. <div>
  13. <table style="width:100%;">
  14. <tr>
  15. <td>
  16. </td>
  17. <td>
  18. </td>
  19. <td>
  20. </td>
  21. </tr>
  22. <tr>
  23. <td>
  24. </td>
  25. <td>
  26. <asp:GridView ID="GridView1" runat="server" AllowSorting="True"
  27. AutoGenerateColumns="False" BackColor="White" BorderColor="#999999"
  28. BorderStyle="Solid" BorderWidth="1px" CellPadding="3" DataKeyNames="id"
  29. ForeColor="Black" GridLines="Vertical" onsorting="GridView1_Sorting">
  30. <AlternatingRowStyle BackColor="#CCCCCC" />
  31. <Columns>
  32. <asp:TemplateField HeaderText="Id" SortExpression="id">
  33. <%--<EditItemTemplate>
  34. <asp:TextBox ID="TextBox1" runat="server" Text='<%# Bind("id") %>'></asp:TextBox>
  35. </EditItemTemplate>--%>
  36. <ItemTemplate>
  37. <asp:Label ID="Label1" runat="server" Text='<%# Bind("id") %>'></asp:Label>
  38. </ItemTemplate>
  39. </asp:TemplateField>
  40. <asp:TemplateField HeaderText="First Name" SortExpression="fname">
  41. <EditItemTemplate>
  42. <asp:TextBox ID="TextBox2" runat="server" Text='<%# Bind("fname") %>'></asp:TextBox>
  43. </EditItemTemplate>
  44. <ItemTemplate>
  45. <asp:Label ID="Label2" runat="server" Text='<%# Bind("fname") %>'></asp:Label>
  46. </ItemTemplate>
  47. </asp:TemplateField>
  48. <asp:TemplateField HeaderText="Last Name" SortExpression="lname">
  49. <EditItemTemplate>
  50. <asp:TextBox ID="TextBox3" runat="server" Text='<%# Bind("lname") %>'></asp:TextBox>
  51. </EditItemTemplate>
  52. <ItemTemplate>
  53. <asp:Label ID="Label3" runat="server" Text='<%# Bind("lname") %>'></asp:Label>
  54. </ItemTemplate>
  55. </asp:TemplateField>
  56. <asp:TemplateField HeaderText="City" SortExpression="city">
  57. <EditItemTemplate>
  58. <asp:TextBox ID="TextBox4" runat="server" Text='<%# Bind("city") %>'></asp:TextBox>
  59. </EditItemTemplate>
  60. <ItemTemplate>
  61. <asp:Label ID="Label4" runat="server" Text='<%# Bind("city") %>'></asp:Label>
  62. </ItemTemplate>
  63. </asp:TemplateField>
  64. </Columns>
  65. <FooterStyle BackColor="#CCCCCC" />
  66. <HeaderStyle BackColor="Black" Font-Bold="True" ForeColor="White" />
  67. <PagerStyle BackColor="#999999" ForeColor="Black" HorizontalAlign="Center" />
  68. <SelectedRowStyle BackColor="#000099" Font-Bold="True" ForeColor="White" />
  69. <SortedAscendingCellStyle BackColor="#F1F1F1" />
  70. <SortedAscendingHeaderStyle BackColor="#808080" />
  71. <SortedDescendingCellStyle BackColor="#CAC9C9" />
  72. <SortedDescendingHeaderStyle BackColor="#383838" />
  73. </asp:GridView>
  74. </td>
  75. <td>
  76. </td>
  77. </tr>
  78. <tr>
  79. <td>
  80. </td>
  81. <td>
  82. </td>
  83. <td>
  84. </td>
  85. </tr>
  86. </table>
  88. </div>
  89. </form>
  90. </body>
  91. </html>

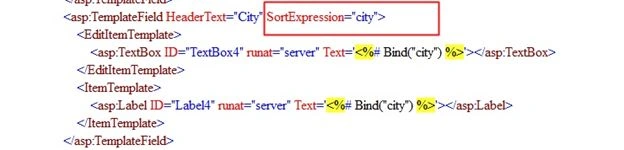

Now for those of who are using the Template Field here, you need to embed a single thing into the code, a Sort Expression, whatever the field is for (like if it is the firstname, then write like sort expression=”firstname”). The following code displays it.

code

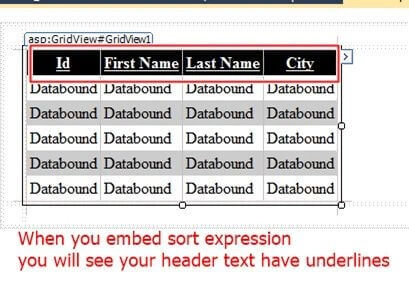

Your design looks like the following:

gridview

Code chamber

Step 5

Open your gridviewsorting_demo.aspx.cs and write some code for the application to make it work.

gridviewsorting_demo.aspx.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Data.SqlClient;
  10. public partial class _Default : System.Web.UI.Page
  11. {
  13. protected void Page_Load(object sender, EventArgs e)
  14. {
  15. if (!Page.IsPostBack)
  16. {
  17. refreshdata();
  18. }
  20. }
  21. public void refreshdata()
  22. {
  24. SqlConnection con = new SqlConnection(@"Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
  25. SqlCommand cmd = new SqlCommand("select * from tbl_data", con);
  26. SqlDataAdapter sda = new SqlDataAdapter(cmd);
  27. DataTable dt = new DataTable();
  28. sda.Fill(dt);
  29. GridView1.DataSource = dt;
  30. GridView1.DataBind();
  31. ViewState["dirState"] = dt;
  32. ViewState["sortdr"] = "Asc";
  35. }
  36. protected void GridView1_Sorting(object sender, GridViewSortEventArgs e)
  37. {
  38. DataTable dtrslt= (DataTable)ViewState["dirState"];
  39. if (dtrslt.Rows.Count > 0)
  40. {
  41. if (Convert.ToString(ViewState["sortdr"]) == "Asc")
  42. {
  43. dtrslt.DefaultView.Sort = e.SortExpression + " Desc";
  44. ViewState["sortdr"] = "Desc";
  45. }
  46. else
  47. {
  48. dtrslt.DefaultView.Sort = e.SortExpression + " Asc";
  49. ViewState["sortdr"] = "Asc";
  50. }
  51. GridView1.DataSource = dtrslt;
  52. GridView1.DataBind();
  55. }
  57. }
  58. }

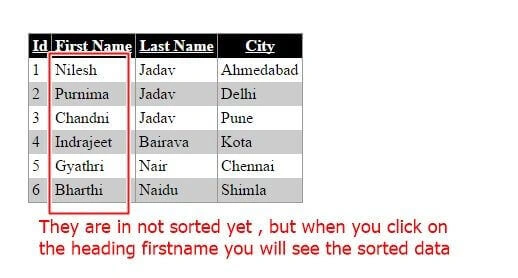

Output chamber
Output

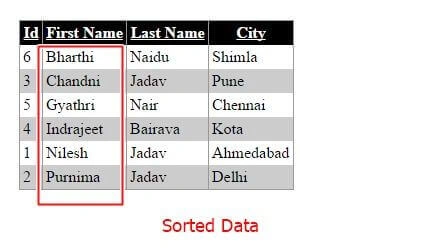

stored data

I hope you liked this. Thank you for reading. Have a good day.
