LINQ With 3 Layer Architecture (Insert Data Into Database)

Step 1: (Back End)

When developing an application, first we prepare a database.

Create Databse:

Create dataBase LINQ_WithThreeLayer
use LINQ_WithThreeLayer
Create table:

create table tbl_Registration
(
Reg_Id int IDENTITY(1,1) primary key,
First_Name varchar(50) NULL,
Last_Name varchar(50) NULL,
UserName varchar(50) NULL,
Password varchar(50) NULL,
)

Create stored Procedure:

Create Proc [dbo].[SP_Registration]
(
@FName varchar(50),
@LName varchar(50),
@UName Varchar(50),
@Password varchar(50)
)
As
Begin
declare @Result int
if not exists(select UserName from tbl_Registration where UserName=@UName)
begin
insert into tbl_Registration(First_Name,Last_Name,UserName,Password)
values(@FName,@LName,@UName,@Password)
set @Result=1
return @Result
end
else
begin
set @Result=0
return @Result
end
End

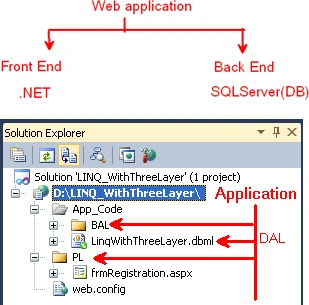

Step 2: (Front End)

• Create a web site with the name LINQ_WithThreeLayer.

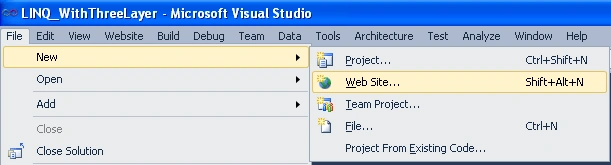

• Go to File menu, select New and select Website.

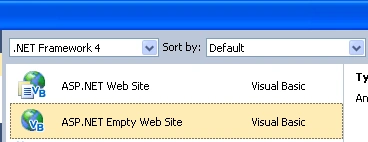

• Select ASP.NET Empty Website.




• Give the application a name (LINQ_WithThreeLayer).




Data Access Layer:

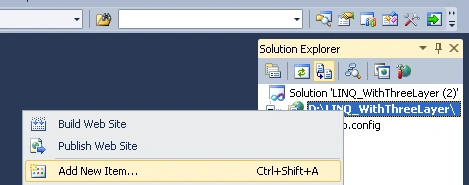

• Go to the Solution Explorer, select the application, right-click select "Add new Item".

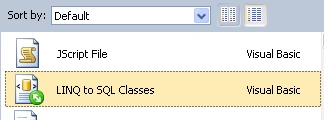

• Select LINQ to SQL Classes Template.




• Give the name for the class "LinqWithThreeLayer" and click add.

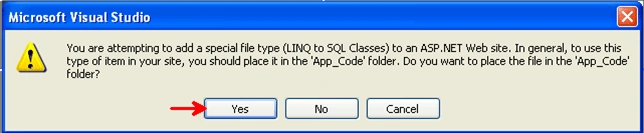

• Click Yes.




• One App_Code folder is created in Solution Explorer.

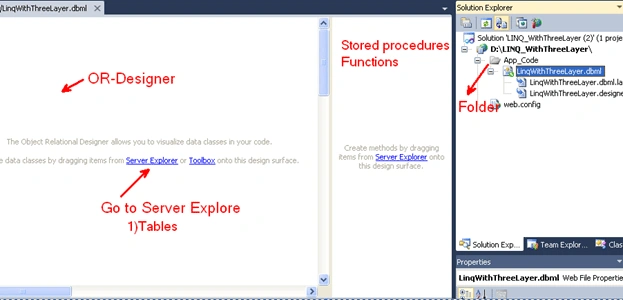

• And OR-Designer window displayed.




• Go to Server Explorer, and click Connect to database.

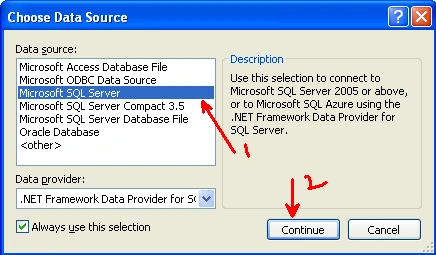

• Select Microsoft SQL Server and click Continue.

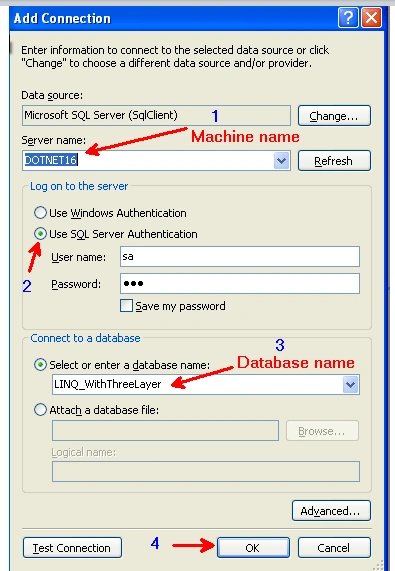

• Give Server name (Client-server) / Machine Name(1-tier), select SQL Server Authentication, give the Database Name and click Test connection and finally Click OK.

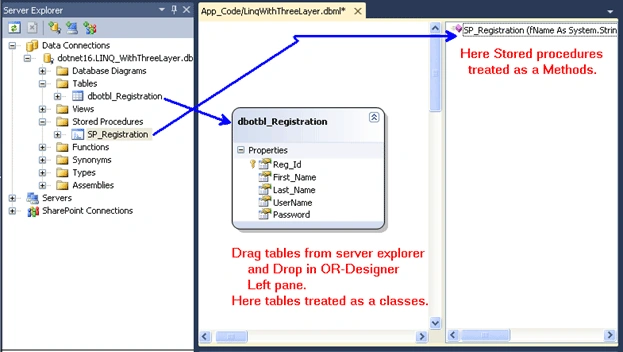

• Go to the Serve rExplorer and drag tables and drop in OR-Designer to left side window, and drag stored procedures and drop to the right side window.

• Then save OR-Designer window.




• After Saving the OR-Designer window, automatically the Data Access Layer class was prepared. And in the web.config file the Connectionstring is created.

  <connectionStrings>

  <add name="LINQ_WithThreeLayerConnectionString"
  connectionString="Data Source=dotnet16;

  Initial Catalog=LINQ_WithThreeLayer;

  User ID=sa;

  Password=123"
  providerName="System.Data.SqlClient" />
  </connectionStrings>

Business Access Layer:

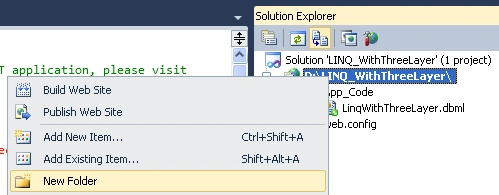

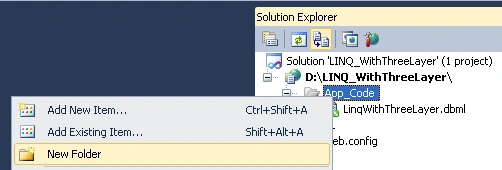

• Go to Solution Explorer and select App_Code; select New Folder. Folder name BAL.

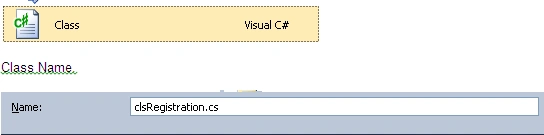

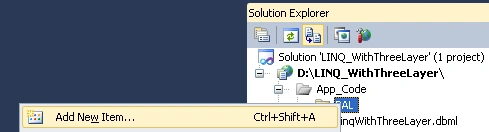

• Select BAL and right click; select Add New Item. Again we can select Class Template, and class name is clsRegistration.




  Select Class.





  clsRegistration class code:

  using System;
  using System.Collections.Generic;
  using System.Linq;
  using System.Web;

  /// <summary>
  /// Summary description for clsRegistration
  /// </summary>
  public class clsRegistration
  {

  LinqWithThreeLayerDataContext obj = new LinqWithThreeLayerDataContext();
  public clsRegistration()
  {
  //
  // TODO: Add constructor logic here
  //
  }

  public int InsertRegistrationDetails(string FName, string Lname, string UserName,
  string
  Password)
  {
  int res = obj.SP_Registration(FName, Lname, UserName, Password);
  return res;
  }

  }

Presentation Layer:

• Go to the Solution Explorer and select application and right click and select Add New Folder. And give it the name PL (Presentation layer).

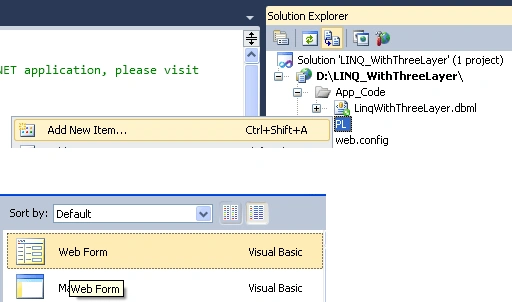

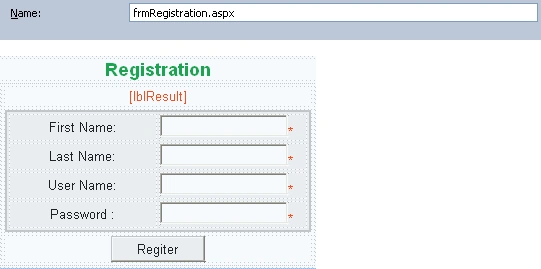

• Go to PL folder and select and right-click, select Add New Item, and select Webform template; give it the name frmRegistration.





  Code behind:

  using System;
  using System.Collections.Generic;
  using System.Linq;
  using System.Web;
  using System.Web.UI;
  using System.Web.UI.WebControls;

  public partial class ThreeLayer_Linq : System.Web.UI.Page
  {
  clsRegistration obj = new clsRegistration();
  protected void Page_Load(object sender, EventArgs e)
  {

  }

  protected void btnRegister_Click(object sender, EventArgs e)
  {
  string Fname = Convert.ToString(txtFName.Text);
  string Lname = Convert.ToString(txtLName.Text);
  string Uname = Convert.ToString(txtUName.Text);
  string Password = Convert.ToString(txtPassword.Text);

  int res = obj.InsertRegistrationDetails(Fname, Lname, Uname, Password);

  if (res > 0)
  {
  lblResult.Text = "Registration details are inserted Successfully!";
  }
  else
  {
  lblResult.Text = "Not inserted!";
  }

  }
  }
