Introduction
Navigation Web User Control is a control which Create navigations buttons at run time so the user can navigate on the data list or any other controls. The developer can change the alignment and separation text between links or show and hide first, last, previous and next links. This control gets his style from its container the developer just need PageIndexClick event to type his code when the page clicked and set paging count in page load
How to use this control
-

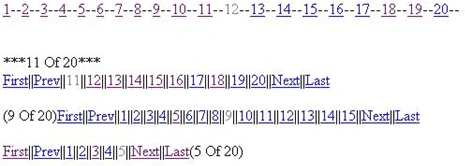

Set Control setting in page load "Layout Properties"
if (!IsPostBack)
{PagingControl1.CountAlignment = PagingControl.Alignment.Center;
PagingControl2.CountAlignment=PagingControl.Alignment.Left;
PagingControl3.CountAlignment=PagingControl.Alignment.Right;
PagingControl2.AfterCountText = "***";
PagingControl2.BeforeCountText = "***";
PagingControl1.CountPosition=PagingControl.Position.Bottom;
PagingControl2.CountPosition = PagingControl.Position.Top; ;
PagingControl3.CountPosition = PagingControl.Position.Left; ;
PagingControl4.CountPosition = PagingControl.Position.Right; ;
PagingControl1.CurrentPageIndex = 1;
PagingControl2.CurrentPageIndex = 2;
PagingControl3.CurrentPageIndex = 3;
PagingControl4.CurrentPageIndex = 4;
PagingControl1.PagesCount = 20;
PagingControl2.PagesCount = 20;
PagingControl3.PagesCount = 20;
PagingControl4.PagesCount = 20;
PagingControl1.LinkSeparatorText = "--";
PagingControl1.LastButtonText = ">>>>";
PagingControl1.FirstButtonText = "<<<<";
PagingControl1.NextButtonText = ">>";
PagingControl1.PreviousButtonText = "<<";
PagingControl1.NavigationLinkesCount = 20;
PagingControl2.NavigationLinkesCount = 10;
PagingControl3.NavigationLinkesCount = 15;
PagingControl4.NavigationLinkesCount = 5;
PagingControl1.ShowCount = false;
PagingControl1.ShowFirst = false;
PagingControl1.ShowLast = false;
PagingControl1.ShowNext= false;
PagingControl1.ShowPrevious = false;
}
-
To get page index from this control use PagingControl1_PageIndexClick(object sender, EventArgs e) event

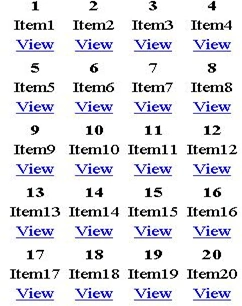

Sample for how to use this control
#region Events
protected void Page_Load(object sender, EventArgs e)
{
if (!IsPostBack)
{
//set control settings
PagingControl1.NoRecordsPerPage = 20;
PagingControl1.CurrentPageIndex = 1;
PagingControl1.NavigationLinkesCount = 12;
//Get Items data
ViewState["_Items"] = GetItems();
ViewPage(PagingControl1.CurrentPageIndex);
}
}
protected void PagingControl1_PageIndexClick(object sender, EventArgs e)
{
ViewPage(PagingControl1.CurrentPageIndex);
} #endregion
#region Methods
private void ViewPage(int PageNo)
{
if (ViewState["_Items"] != null)
{
PagedDataSource objPds = new PagedDataSource();
DataTable dt = (DataTable)ViewState["_Items"];
objPds.DataSource = new DataView(dt);
objPds.AllowPaging = true;
objPds.PageSize = PagingControl1.NoRecordsPerPage;
objPds.CurrentPageIndex = PageNo - 1;
dlstItems.DataSource = objPds;
dlstItems.DataBind();
double d = Math.Ceiling(Convert.ToDouble(dt.Rows.Count) / PagingControl1.NoRecordsPerPage);
PagingControl1.PagesCount = Convert.ToInt32(d);
dlstItems.Visible = true;
PagingControl1.Visible = true;
lblResultMessage.Visible = false;
}
else
{
dlstItems.Visible = false;
lblResultMessage.Visible = true;
PagingControl1.Visible = false;
lblResultMessage.Text = "No Result";
}
}
private DataTable GetItems()
{
DataTable dt = new DataTable();
dt.Columns.Add("ItemId");
dt.Columns.Add("ItemName");
for (int i = 1; i <= 400; i++)
{
DataRow dr = dt.NewRow();
dr["ItemId"] = i.ToString();
dr["ItemName"] = "Item" + i;
dt.Rows.Add(dr);
}
return dt;
} #endregion
The Control Properties and events (Source Code):
public class PagingControl : WebControl
{
#region Variables
Label lblCount = new Label();
#endregion
#region Properties
#region Appearance
public enum Alignment
{
Center,
Right,
Left,
}
public enum Position
{
Top,
Bottom,
Right,
Left,
}
[Bindable(true)]
[Category("Appearance")]
[DefaultValue("")]
[Localizable(true)]
public string Text
{
get
{
String s = Convert.ToString(ViewState["Text"]);
if (s == null || s.Length==0)
{
return String.Empty;
}
else
{
return s;
}
}
set
{
ViewState["Text"] = value;
}
}
[Bindable(true), Category("Appearance"), DefaultValue("||"), Localizable(true)]
[Browsable (true)]
public string LinkSeparatorText
{
get
{
string s = Convert.ToString(ViewState["_LinkSeparatorText"]);
if (s == null || s.Length==0)
{
return "||";
}
else
{
return s;
}
}
set
{
ViewState["_LinkSeparatorText"] = value;
}
}
[Bindable(true), Category("Appearance"), DefaultValue("Prev"), Localizable(true)]
[Browsable(true)]
public String PreviousButtonText
{
get
{
String s = Convert.ToString(ViewState["_PreviousButtonText"]);
if (s == null || s.Length==0)
{
return "Prev";
}
else
{
return s;
}
}
set
{
ViewState["_PreviousButtonText"] = value;
}
}
[Bindable(true), Category("Appearance"), DefaultValue("Next"), Localizable(true)]
public String NextButtonText
{
get
{
String s = Convert.ToString(ViewState["_NextButtonText"]);
if (s == null || s.Length==0)
{
return "Next";
}
else
{
return s;
}
}
set
{
ViewState["_NextButtonText"] = value;
}
}
[Bindable(true), Category("Appearance"), DefaultValue("First"), Localizable(true)]
public String FirstButtonText
{
get
{
String s = Convert.ToString(ViewState["_FirstButtonText"]);
if (s == null || s.Length==0)
{
return "First";
}
else
{
return s;
}
}
set
{
ViewState["_FirstButtonText"] = value;
}
}
[Bindable(true), Category("Appearance"), DefaultValue("Last"), Localizable(true)]
public String LastButtonText
{
get
{
String s = Convert.ToString(ViewState["_LastButtonText"]);
if (s == null || s.Length==0)
{
return "Last";
}
else
{
return s;
}
}
set
{
ViewState["_LastButtonText"] = value;
}
}
[Bindable(true), Category("Appearance"), DefaultValue(" Of "), Localizable(true)]
public String SeparatedCountText
{
get
{
String s = Convert.ToString(ViewState["_SeparatedCountText"]);
if (s == null || s.Length==0)
{
return " Of ";
}
else
{
return s;
}
}
set
{
ViewState["_SeparatedCountText"] = value;
}
}
[Bindable(true), Category("Appearance"), DefaultValue("("), Localizable(true)]
public String BeforeCountText
{
get
{
String s = Convert.ToString(ViewState["_BeforeCountText"]);
if (s == null || s.Length==0)
{
return "(";
}
else
{
return s;
}
}
set
{
ViewState["_BeforeCountText"] = value;
}
}
[Bindable(true), Category("Appearance"), DefaultValue(")"), Localizable(true)]
public String AfterCountText
{
get
{
String s = Convert.ToString(ViewState["_AfterCountText"]);
if (s == null || s.Length==0)
{
return ")";
}
else
{
return s;
}
}
set
{
ViewState["_AfterCountText"] = value;
}
}
[Bindable(true), Category("Appearance"), DefaultValue("Alignment.Center"), Localizable(true)]
public Alignment CountAlignment
{
get
{
Alignment s = Alignment.Center;
if(ViewState["_CountAlignment"]!=null)
s = (Alignment)ViewState["_CountAlignment"];
return s;
}
set
{
ViewState["_CountAlignment"] = value;
}
}
[Bindable(true), Category("Appearance"), DefaultValue("Position.Bottom"), Localizable(true)]
public Position CountPosition
{
get
{
Position s = Position.Bottom;
if (ViewState["_CountPosition"] != null)
s = (Position)ViewState["_CountPosition"];
return s;
}
set
{
ViewState["_CountPosition"] = value;
}
}
#endregion
#region Visibility"
[Bindable(true), Category("Visibility"), DefaultValue("true"), Localizable(true)]
public Boolean ShowCount
{
get
{
Boolean s = false;
if (ViewState["_ShowCount"] == null)
{
s = true;
}
return s;
}
set
{
ViewState["_ShowCount"] = value;
}
}
[Bindable(true), Category("Visibility"), DefaultValue("true"), Localizable(true)]
public Boolean ShowFirst
{
get
{
Boolean s = false;
if (ViewState["_ShowFirst"] == null)
{
s = true;
}
return s;
}
set
{
ViewState["_ShowFirst"] = value;
}
}
[Bindable(true), Category("Visibility"), DefaultValue("true"), Localizable(true)]
public Boolean ShowLast
{
get
{
Boolean s = false;
if (ViewState["_ShowLast"] == null)
{
s = true;
}
return s;
}
set
{
ViewState["_ShowLast"] = value;
}
}
[Bindable(true), Category("Visibility"), DefaultValue("true"), Localizable(true)]
public Boolean ShowPrevious
{
get
{
Boolean s = false;
if (ViewState["_ShowPrevious"] == null)
{
s = true;
}
return s;
}
set
{
ViewState["_ShowPrevious"] = value;
}
}
[Bindable(true), Category("Visibility"), DefaultValue("true"), Localizable(true)]
public Boolean ShowNext
{
get
{
Boolean s = false;
if (ViewState["_ShowNext"] == null)
{
s = true;
}
return s; }
set
{
ViewState["_ShowNext"] = value;
}
}
#endregion
#region Paging"
private Int32 _CurrentStartPage;
public Int32 CurrentStartPage
{
get
{
if ((CurrentPageIndex % NavigationLinkesCount == 0))
{
_CurrentStartPage = (CurrentPageIndex - NavigationLinkesCount) + 1;
}
else
{
_CurrentStartPage = (CurrentPageIndex - (CurrentPageIndex % NavigationLinkesCount)) + 1;
}
return _CurrentStartPage;
}
}
private Int32 _CurrentPageIndex;
public Int32 CurrentPageIndex
{
get
{
if ((ViewState["_CurrentPageIndex"] == null))
{
_CurrentPageIndex = 1;
}
else
{
_CurrentPageIndex = Convert.ToInt32(ViewState["_CurrentPageIndex"]);
}
return _CurrentPageIndex;
}
set
{
_CurrentPageIndex = value;
ViewState["_CurrentPageIndex"] = _CurrentPageIndex;
}
}
private Int32 _PagesCount;
public Int32 PagesCount
{
get
{
if (ViewState["_PagesCount"] == null)
{
_PagesCount = 1;
}
else
{
_PagesCount = Convert.ToInt32(ViewState["_PagesCount"]);
}
return _PagesCount;
}
set
{
_PagesCount = value;
ViewState["_PagesCount"] = _PagesCount;
}
}
/// <summary>
/// count of navigation linkes that will appears
/// </summary>
private Int32 _NavigationLinkesCount;
public Int32 NavigationLinkesCount
{
get
{
if (ViewState["_NavigationLinkesCount"] == null)
{
_NavigationLinkesCount = 1;
}
else
{
_NavigationLinkesCount = Convert.ToInt32(ViewState["_NavigationLinkesCount"]);
}
return _NavigationLinkesCount;
}
set
{
_NavigationLinkesCount = value;
ViewState["_NavigationLinkesCount"] = _NavigationLinkesCount;
}}
private Int32 _NoRecordsPerPage;
public Int32 NoRecordsPerPage
{
get
{
if (ViewState["_NoRecordsPerPage"] == null)
{
_NoRecordsPerPage = 1;
}
else
{
_NoRecordsPerPage = Convert.ToInt32(ViewState["_NoRecordsPerPage"]);
}
return _NoRecordsPerPage;
}
set
{
_NoRecordsPerPage = value;
ViewState["_NoRecordsPerPage"] = _NoRecordsPerPage;
}
}
#endregion
#endregion
#region Methods
private void GeneratePaging()
{
this.Controls.Clear();
#region Count Label Top Left
// add count label according to it's position
lblCount = new Label();
lblCount.ID = this.ClientID + "_" + "lblCount";
lblCount.Visible = ShowCount;
if (CountPosition == Position.Top)
{
// Controls.Add(new LiteralControl("<table width='100%'><tr><td align='" + CountAlignment.ToString() + "'" + ">"))
Controls.Add(new LiteralControl("<div style='text-align: " + CountAlignment.ToString() + "'>"));
this.Controls.Add(lblCount);
Controls.Add(new LiteralControl("</div>"));
}
else if (CountPosition == Position.Left)
{
this.Controls.Add(lblCount);
}
#endregion
Int32 EndPage = CurrentStartPage + NavigationLinkesCount - 1;
if ((EndPage > PagesCount))
{
EndPage = PagesCount;
}
LinkButton lbtn;
for (int i = CurrentStartPage; i <= EndPage; i++)
{
#region First Button And Prev
//First Button And Prev
if (CurrentPageIndex > 1 && (i == CurrentStartPage))
{ // added once in start
//First
lbtn = new LinkButton();
lbtn.Text = FirstButtonText;
lbtn.ID = this.ClientID + "_" + "btnFirst";
lbtn.CausesValidation = false;
lbtn.Visible = ShowFirst;
lbtn.Click += LinkedButtonClick;
Controls.Add(lbtn);
if (ShowFirst)
{
Controls.Add(new LiteralControl(LinkSeparatorText));
//Previous
lbtn = new LinkButton();
lbtn.Text = PreviousButtonText;
lbtn.ID = this.ClientID + "_" + "btnPrevPage" + (CurrentPageIndex - 1);
lbtn.CausesValidation = false;
lbtn.Visible = ShowPrevious;
lbtn.Click += LinkedButtonClick;
Controls.Add(lbtn);
Controls.Add(new LiteralControl(LinkSeparatorText));
}}
#endregion
#region Pages No
//Page Index
lbtn = new LinkButton();
lbtn.Text = i.ToString();
lbtn.ID = this.ClientID + "_" + "btn" + i.ToString();
lbtn.CausesValidation = false;
lbtn.Click += LinkedButtonClick;
Controls.Add(lbtn);
if (PagesCount > 1)
{
Controls.Add(new LiteralControl(LinkSeparatorText));
}
lbtn.Enabled = true;
#endregion
#region Next Button And Last
//Next Button And Last
//added once if( CurrentPageIndex less than
if (CurrentPageIndex < PagesCount && (i == EndPage))
{ //add once in End
//Next
lbtn = new LinkButton();
lbtn.Text = NextButtonText;
lbtn.ID = this.ClientID + "_" + "btnNextPage" + (CurrentPageIndex + 1);
lbtn.CausesValidation = false;
lbtn.Visible = ShowNext;
lbtn.Click += LinkedButtonClick;
Controls.Add(lbtn);
if (ShowNext)
{
Controls.Add(new LiteralControl(LinkSeparatorText));
//Last
lbtn = new LinkButton();
lbtn.Text = LastButtonText;
lbtn.ID = this.ClientID + "_" + "btnLast" + (i + 1);
lbtn.CausesValidation = false;
lbtn.Visible = ShowLast;
lbtn.Click += LinkedButtonClick;
Controls.Add(lbtn);
}
}
#endregion
}
#region Count Label Bottom Right
//add count label according to it's position
if (CountPosition == Position.Bottom)
{
Controls.Add(new LiteralControl("<br>"));
Controls.Add(new LiteralControl("<div style='text-align: " + CountAlignment.ToString() + "'>"));
this.Controls.Add(lblCount);
Controls.Add(new LiteralControl("</div>"));}
else if (CountPosition == Position.Right)
{
this.Controls.Add(lblCount);
}
#endregion
}
private void SelectPage()
{
Int32 PageIndex = CurrentPageIndex;
Control ctl = FindControl(this.ClientID + "_" + "btn" + PageIndex);
if (ctl != null)
{
LinkButton btnToBeClicked = (LinkButton)ctl;
if (btnToBeClicked != null)
{
btnToBeClicked.Enabled = false;
lblCount.Text = BeforeCountText + PageIndex + SeparatedCountText + PagesCount + AfterCountText;
}
}
}
public void PaintWithoutClickSelected()
{
GeneratePaging();
SelectPage();
}
public void PaintWithClickSelected()
{
PaintWithoutClickSelected();
FirePageClickEvent();
}
#endregion
#region Event
/// <summary>
/// page index click event fire when click on navegations buttons
/// </summary>
public event EventHandler PageIndexClick;
protected override void OnLoad(System.EventArgs e)
{
//Generate Linked Buttons
PaintWithoutClickSelected();
base.OnLoad(e);
}
protected override void CreateChildControls()
{
base.CreateChildControls();
}
protected override void OnPreRender(EventArgs e)
{
//Generate Linked Buttons
PaintWithoutClickSelected();
base.OnPreRender(e);
}
protected override void Render(System.Web.UI.HtmlTextWriter writer)
{
foreach (Control ctl in this.Controls)
{
if (ctl != null)
{
ctl.RenderControl(writer);
}
}
base.Render(writer);
}
protected override void RenderContents(HtmlTextWriter output)
{
output.Write(Text);
}
protected void LinkedButtonClick(Object sender, EventArgs e)
{
LinkButton lbtn = (LinkButton)sender;
if ((lbtn.ID.IndexOf(this.ClientID + "_" + "btnFirst") > -1))
{
CurrentPageIndex = 1;
}
else if ((lbtn.ID.IndexOf(this.ClientID + "_" + "btnPrevPage") > -1))
{
if ((CurrentPageIndex > 1))
{
CurrentPageIndex = CurrentPageIndex - 1;
}
}
else if ((lbtn.ID.IndexOf(this.ClientID + "_" + "btnNextPage") > -1))
{
if ((CurrentPageIndex < PagesCount))
{
CurrentPageIndex = CurrentPageIndex + 1;
}
}
else if ((lbtn.ID.IndexOf(this.ClientID + "_" + "btnLast") > -1))
{
CurrentPageIndex = PagesCount;
}
else
{
CurrentPageIndex = Convert.ToInt32(lbtn.Text);
}
PaintWithClickSelected();
}
private void FirePageClickEvent()
{
if (PageIndexClick != null)
{
PageIndexClick(null, null);
}
}
#endregion
}
maged ahmededitedPosted Feb 25, 2010, 7:04 PMEdited Feb 25, 2010, 7:05 PM
thanks nesreen
