One-to-zero or one relationship using Fluent API

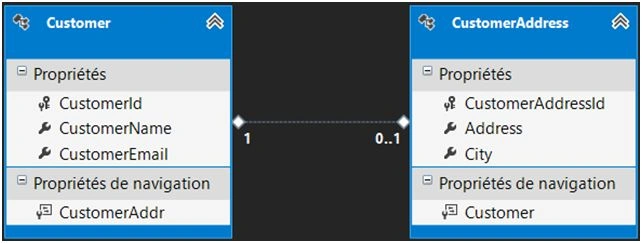

Let’s configure one-to-zero or one relationship using Customer and Customer Address entities.

Customer.cs

  1. public class Customer
  2. {
  3. publicintCustomerId
  4. {
  5. get;
  6. set;
  7. }
  8. public string CustomerName
  9. {
  10. get;
  11. set;
  12. }
  13. public string CustomerEmail
  14. {
  15. get;
  16. set;
  17. }
  18. public CustomerAddressCustomerAddr
  19. {
  20. get;
  21. set;
  22. }
  23. publicCustomer()
  24. {
  25. }
  26. }
CustomerAddress.cs
  1. public class CustomerAddress
  2. {
  3. public int CustomerAddressId
  4. {
  5. get;
  6. set;
  7. }
  8. public string Address
  9. {
  10. get;
  11. set;
  12. }
  13. public string City
  14. {
  15. get;
  16. set;
  17. }
  18. public CustomerCustomer
  19. {
  20. get;
  21. set;
  22. }
  23. public CustomerAddress()
  24. {
  25. }
  26. }
Now, we can pass to configure one to one or zero relationship using code as shown below:
  1. protected override void OnModelCreating(DbModelBuildermodelBuilder)
  2. {
  3. // Now, I will configure Customer &CustomerAddress entities
  4. modelBuilder.Entity < Customer > ()
  5. .HasOptional(c => c.CustomerAddr)
  6. .WithRequired(Ad => Ad.Customer);
  7. }

Note

One-to-one is not possible in MS SQL Server. EF creates one-to-zero or one relationship on entities not in database.



At this level, I would like to share with you the following question:

If CustomerAddressId does not follow primary key convention (className<Id>), how can we do to handle this problem?

Now, let’s consider the following Customer & CustomerAddress entities.

  1. public class Customer
  2. {
  3. public int CustomerID
  4. {
  5. get;
  6. set;
  7. }
  8. public string CustomerName
  9. {
  10. get;
  11. set;
  12. }
  13. public string CustomerEmail
  14. {
  15. get;
  16. set;
  17. }
  18. public CustomerAddressCustomerAddr
  19. {
  20. get;
  21. set;
  22. }
  23. public Customer()
  24. {
  25. }
  26. }
  27. public class CustomerAddress
  28. {
  29. public int Id
  30. {
  31. get;
  32. set;
  33. }
  34. public string Address
  35. {
  36. get;
  37. set;
  38. }
  39. public string City
  40. {
  41. get;
  42. set;
  43. }
  44. public CustomerCustomer
  45. {
  46. get;
  47. set;
  48. }
  49. public CustomerAddress()
  50. {
  51. }
  52. }
So, to overcome this problem, we need to add line which specifies Id property is considered as primary key.
  1. protected override void OnModelCreating(DbModelBuildermodelBuilder)
  2. {
  3. //Configure Id as primary key for customerAddress entity
  4. modelBuilder.Entity < CustomerAddress > ().HasKey(CA => CA.Id);
  5. modelBuilder.Entity < Customer > ()
  6. .HasOptional(c => c.CustomerAddr)
  7. .WithRequired(Ad => Ad.Customer);
  8. }
