How to add Button

To add a button to the Sales Order form in SAP Business One (SAP B1) using C#, you need to use the SAP Business One SDK . Specifically, you will work with the User Interface API to customize forms and add buttons.

Below is an explanation of how to modify your existing code to add a button to the Sales Order form. See how you can modify your code to add a button to the Sales Order form:

using System;
using System.Windows.Forms;
using SAPbouiCOM;

namespace SAPB1_AddButtonToSalesOrder
{
    class Program
    {
        static void Main(string[] args)
        {
            // Connect to SAP Business One
            int res = 0;
            string strret = "";
            SAPbobsCOM.Company oCompany = new SAPbobsCOM.Company();
            oCompany.DbServerType = SAPbobsCOM.BoDataServerTypes.dst_MSSQL2008;
            oCompany.Server = "127.0.0.1";
            oCompany.UseTrusted = false;
            oCompany.CompanyDB = "db_name";
            oCompany.UserName = "SomeUser";
            oCompany.Password = "******";

            if (oCompany.Connect() != 0)
            {
                oCompany.GetLastError(out res, out strret);
                MessageBox.Show("Connection failed: " + strret);
                return;
            }

            MessageBox.Show("Connected successfully!");

            // Get the SAP Business One Application object
            SAPbouiCOM.Application oApplication = null;
            try
            {
                oApplication = (SAPbouiCOM.Application)System.Runtime.InteropServices.Marshal.GetActiveObject("SAPbouiCOM.Application");
            }
            catch (Exception ex)
            {
                MessageBox.Show("Failed to get SAP Business One application object: " + ex.Message);
                return;
            }

            // Access the Sales Order form
            Form oForm = null;
            try
            {
                oForm = oApplication.Forms.Item("139"); // "139" is the unique ID for the Sales Order form
            }
            catch (Exception ex)
            {
                MessageBox.Show("Failed to access Sales Order form: " + ex.Message);
                return;
            }

            // Add a new button to the Sales Order form
            try
            {
                Item oItem = oForm.Items.Add("MyCustomButton", BoFormItemTypes.it_BUTTON); // Add a button
                oItem.Left = 10; // Set the button's position (X coordinate)
                oItem.Top = 10;  // Set the button's position (Y coordinate)
                oItem.Width = 100; // Set the button's width
                oItem.Height = 20; // Set the button's height

                Button oButton = (Button)oItem.Specific;
                oButton.Caption = "Click Me"; // Set the button's caption

                // Attach an event handler to the button
                oApplication.SetStatusBarMessage("Custom button added to Sales Order form.", BoMessageTime.bmt_Short, false);

                // Event handling (optional)
                oApplication.ItemEvent += new _IApplicationEvents_ItemEventEventHandler(Application_ItemEvent);
            }
            catch (Exception ex)
            {
                MessageBox.Show("Failed to add button: " + ex.Message);
            }
        }

        // Event handler for button click
        private static void Application_ItemEvent(string FormUID, ref ItemEvent pVal, out bool BubbleEvent)
        {
            BubbleEvent = true;

            if (pVal.FormTypeEx == "139" && pVal.EventType == BoEventTypes.et_CLICK && pVal.ItemUID == "MyCustomButton")
            {
                if (pVal.BeforeAction == false)
                {
                    MessageBox.Show("Custom button clicked!");
                }
            }
        }
    }
}

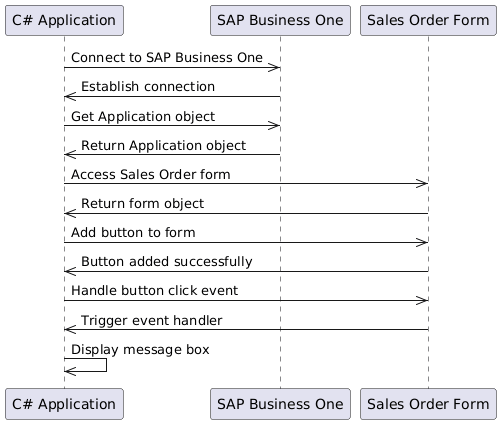

1. Connecting to SAP Business One:

   • The oCompany.Connect() method establishes a connection to the SAP Business One database.
   • If the connection fails, an error message is displayed.

2. Accessing the SAP Business One Application Object:

   • The System.Runtime.InteropServices.Marshal.GetActiveObject method retrieves the active instance of the SAP Business One application.

3. Accessing the Sales Order Form:

   • The oApplication.Forms.Item("139") method accesses the Sales Order form. The "139" is the unique identifier for the Sales Order form.

4. Adding a Button:

   • A new button is added to the form using the Items.Add method.
   • The button's properties (position, size, caption) are set using the Item and Button objects.

5. Handling Button Click Events:

   • The Application_ItemEvent method handles events on the form.
   • When the custom button (MyCustomButton) is clicked, a message box is displayed.

Hello Ramco,

To add a button to the Sales Order form in SAP Business One (SAP B1), you need to use the SAP B1 SDK (Software Development Kit) to create an add-on or extension. The code you provided is for connecting to the SAP B1 company database, but you need to extend it to include the logic for adding a button to the Sales Order form.

Set Up Your Development Environment

• Ensure you have the SAP B1 SDK installed.

• Use Visual Studio to create a new C# project (e.g., a Class Library or Windows Forms project).

• Add references to the SAP B1 SDK libraries (e.g., SAPbobsCOM.dll and SAPbouiCOM.dll).

Create the Button on the Sales Order Form

• Use the SAPbouiCOM namespace to interact with the SAP B1 user interface.

• Add a button to the Sales Order form (139 is the form type for Sales Orders).

Here’s an example of how to add a button:

using SAPbouiCOM;
using SAPbobsCOM;
using System;
using System.Windows.Forms;

public class AddButtonToSalesOrder
{
    private static Application SBO_Application;
    private static Company oCompany;

    public static void Main()
    {
        ConnectToSAP();
        AddButton();
    }

    private static void ConnectToSAP()
    {
        oCompany = new Company();
        oCompany.DbServerType = BoDataServerTypes.dst_MSSQL2008;
        oCompany.Server = "127.0.0.1";
        oCompany.UseTrusted = false;
        oCompany.CompanyDB = "db_name";
        oCompany.UserName = "SomeUser";
        oCompany.Password = "******";

        int res = oCompany.Connect();
        if (res != 0)
        {
            string errorMsg = oCompany.GetLastErrorDescription();
            MessageBox.Show("Connection failed: " + errorMsg);
            return;
        }

        SBO_Application = new Application();
        SBO_Application = (Application)SAPbouiCOM.Framework.Application.SBO_Application;
    }

    private static void AddButton()
    {
        try
        {
            // Get the Sales Order form
            Form oForm = SBO_Application.Forms.GetFormByTypeAndCount(139, 1);

            // Create a new button
            Item oItem = oForm.Items.Add("MyButton", BoFormItemTypes.it_BUTTON);
            oItem.Left = 500; // Position the button
            oItem.Top = 10;
            oItem.Width = 100;
            oItem.Height = 30;

            Button oButton = (Button)oItem.Specific;
            oButton.Caption = "My Button"; // Set button text

            // Add event handler for the button click
            oButton.Click += new _IButtonEvents_ClickEventHandler(Button_Click);
        }
        catch (Exception ex)
        {
            MessageBox.Show("Error adding button: " + ex.Message);
        }
    }

    private static void Button_Click(object sboObject, SBOItemEventArg pVal, out bool BubbleEvent)
    {
        BubbleEvent = true;
        MessageBox.Show("Button clicked!");
    }
}

Key Notes:

• Ensure you have the necessary permissions to modify forms in SAP B1.

• The button position (Left, Top, Width, Height) can be adjusted as needed.

• You can extend the Button_Click method to perform any custom logic you need

You can add a button to the Sales Order form in SAP Business One using the SAP Business One UI API. Below is an example of how you can achieve this:

Steps to Add a Button in the Sales Order Form

1. Connect to SAP Business One (You already have this in your code).
2. Get the Sales Order Form (ORDR - Form Type 139).
3. Add a Button to the Form.
4. Handle the Button Click Event.

Updated Code to Add a Button

using SAPbouiCOM;
using SAPbobsCOM;
using System;
using System.Windows.Forms;

class SAPAddon
{
    private static SAPbouiCOM.Application SBO_Application;
    private static SAPbobsCOM.Company oCompany;

    public static void Main()
    {
        try
        {
            // Connect to SAP Business One UI API
            SboGuiApi sboGuiApi = new SboGuiApi();
            string sConnectionString = Environment.GetCommandLineArgs().GetValue(1).ToString();
            sboGuiApi.Connect(sConnectionString);
            SBO_Application = sboGuiApi.GetApplication();

            // Connect to SAP Business One DI API
            oCompany = new SAPbobsCOM.Company();
            oCompany.Server = "127.0.0.1";
            oCompany.CompanyDB = "db_name";
            oCompany.UserName = "SomeUser";
            oCompany.Password = "******";
            oCompany.DbServerType = SAPbobsCOM.BoDataServerTypes.dst_MSSQL2008;
            oCompany.UseTrusted = false;
            oCompany.Connect();

            int res;
            string strret;
            oCompany.GetLastError(out res, out strret);
            MessageBox.Show(strret);

            // Add button to Sales Order form
            SBO_Application.ItemEvent += new _IApplicationEvents_ItemEventEventHandler(SBO_Application_ItemEvent);
            AddButtonToSalesOrderForm();
        }
        catch (Exception ex)
        {
            MessageBox.Show("Error: " + ex.Message);
        }
    }

    private static void AddButtonToSalesOrderForm()
    {
        try
        {
            Form oForm = SBO_Application.Forms.GetForm("139", 1); // 139 = Sales Order Form Type

            // Create button item
            Item oButtonItem = oForm.Items.Add("btnCustom", BoFormItemTypes.it_BUTTON);
            oButtonItem.Left = oForm.Items.Item("2").Left + 100; // Positioning
            oButtonItem.Top = oForm.Items.Item("2").Top;
            oButtonItem.Width = 100;
            oButtonItem.Height = 20;

            // Create button object
            Button oButton = (Button)oButtonItem.Specific;
            oButton.Caption = "Click Me";

            SBO_Application.StatusBar.SetText("Button added successfully!", BoMessageTime.bmt_Short, BoStatusBarMessageType.smt_Success);
        }
        catch (Exception ex)
        {
            SBO_Application.StatusBar.SetText("Error adding button: " + ex.Message, BoMessageTime.bmt_Short, BoStatusBarMessageType.smt_Error);
        }
    }

    // Handle button click event
    private static void SBO_Application_ItemEvent(string FormUID, ref ItemEvent pVal, out bool BubbleEvent)
    {
        BubbleEvent = true;
        if (pVal.FormTypeEx == "139" && pVal.EventType == BoEventTypes.et_ITEM_PRESSED && pVal.BeforeAction == false)
        {
            if (pVal.ItemUID == "btnCustom")
            {
                SBO_Application.StatusBar.SetText("Custom Button Clicked!", BoMessageTime.bmt_Short, BoStatusBarMessageType.smt_Warning);
            }
        }
    }
}

Explanation of Code

1. Connecting to SAP Business One

   • Uses SboGuiApi to connect to the UI API.
   • Connects to DI API to interact with data.

2. Adding a Button to the Sales Order Form

   • Finds Form 139 (Sales Order).
   • Creates a new Button (btnCustom).
   • Sets button position near the existing form buttons.

3. Handling the Button Click Event

   • Listens to ItemEvent.
   • Checks if the event is for Form Type 139 and the custom button (btnCustom).
   • Shows a message when clicked.
