Indexes in SQL server

What is an Index in SQL Server?

An index in SQL Server is a database object that improves the speed of data retrieval operations on a table at the cost of additional storage and maintenance during data modification operations (e.g., INSERT, UPDATE, DELETE). It acts like a lookup table that helps the database find rows quickly.

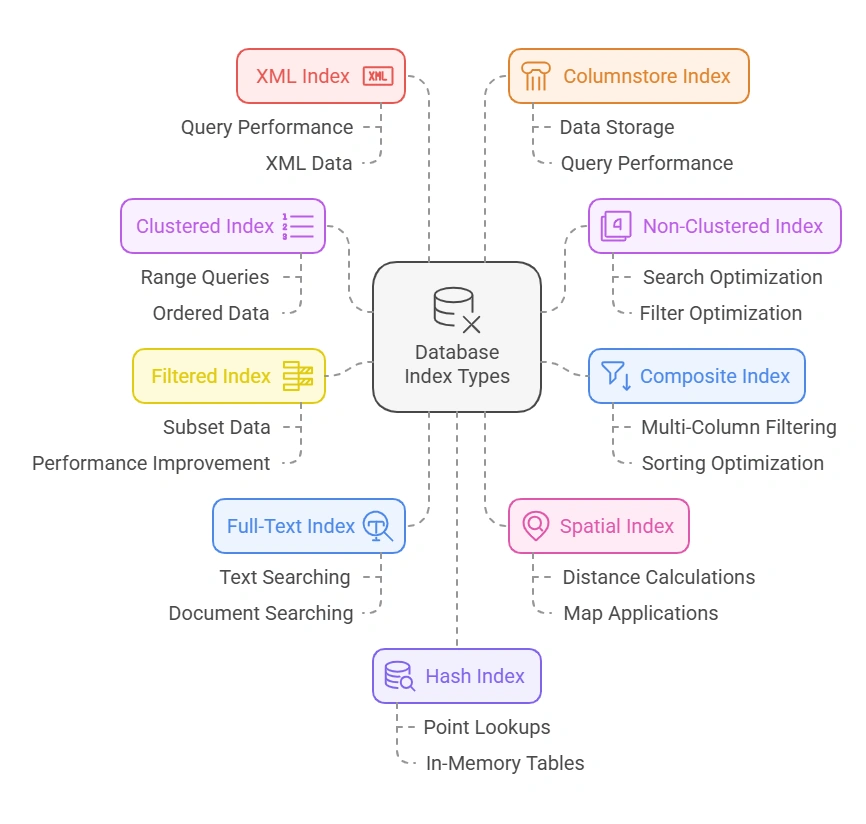

Types of Indexes in SQL Server

1. Clustered Index

• Description: Sorts and stores the data rows in the table based on the key values of the index. A table can have only one clustered index.
• Storage: Data rows are stored in the same order as the index.
• When to Use:
  • When the data is queried in a specific order frequently (e.g., range queries like dates).
  • On columns that are unique and often used for sorting or filtering.
• Example:

  CREATE CLUSTERED INDEX idx_EmployeeID ON Employees(EmployeeID);


2. Non-Clustered Index

• Description: Contains pointers to the actual data in the table, not the data itself. A table can have multiple non-clustered indexes.
• Storage: Stores index structure separately from the actual data.
• When to Use:
  • On columns used in WHERE, JOIN, or GROUP BY clauses that are not part of the clustered index.
  • For frequently queried columns that do not define the data's physical order.
• Example:

  CREATE NONCLUSTERED INDEX idx_LastName ON Employees(LastName);


3. Unique Index

• Description: Ensures that all values in the indexed column(s) are unique. Can be clustered or non-clustered.
• When to Use:
  • On columns that require uniqueness, such as email addresses or usernames.
• Example:

  CREATE UNIQUE INDEX idx_Unique_Email ON Users(Email);


4. Composite Index

• Description: An index on two or more columns.
• When to Use:
  • When queries frequently filter or sort by multiple columns together.
• Example:

  CREATE NONCLUSTERED INDEX idx_Composite ON Orders(CustomerID, OrderDate);


5. Filtered Index

• Description: A non-clustered index with a filter condition to index a subset of rows.
• When to Use:
  • On columns with sparse data (e.g., where many rows have NULLs or specific values are queried often).
• Example:

  CREATE NONCLUSTERED INDEX idx_Filtered ON Sales(Total) WHERE Total > 1000;


6. Full-Text Index

• Description: Supports full-text search on large text data, such as finding words or phrases in a text column.
• When to Use:
  • On large text columns when performing searches for words, phrases, or patterns.
• Example:

  CREATE FULLTEXT INDEX ON Articles(Content) KEY INDEX PK_ArticleID;


7. XML Index

• Description: Used to index XML data stored in an XML data type column.
• When to Use:
  • When querying XML data frequently.
• Example:

  CREATE PRIMARY XML INDEX idx_XML_Data ON Orders(XMLData);


8. Columnstore Index

• Description: Stores data in a columnar format rather than rows, optimizing for analytical and reporting workloads.
• When to Use:
  • For large datasets and analytical queries in data warehousing.
• Example:

  CREATE CLUSTERED COLUMNSTORE INDEX idx_ColumnStore ON SalesData;


9. Spatial Index

• Description: Indexes spatial data types (e.g., geography, geometry).
• When to Use:
  • When working with geospatial data (e.g., GIS applications).
• Example:

  CREATE SPATIAL INDEX idx_Spatial ON Locations(GeoData);


When to Use Indexes in Real-Time

1. Frequent Searches: Use indexes on columns that are frequently used in WHERE, JOIN, or GROUP BY clauses to speed up searches.

2. Sorting and Ordering: Apply indexes to columns often used in ORDER BY clauses to avoid sorting overhead.

3. Unique Constraints: Use a unique index to enforce data integrity for columns that must have unique values, such as email addresses or employee IDs.

4. Range Queries: Clustered indexes work well for range queries (e.g., date ranges).

5. Sparse Data: Use filtered indexes for columns with many NULL values or specific ranges of values.

6. Analytical Workloads: Use columnstore indexes for reporting and analytical queries.

7. Text Searches: Apply full-text indexes to text columns for advanced search capabilities.

Considerations and Best Practices

• Avoid Over-Indexing: Too many indexes can slow down INSERT, UPDATE, and DELETE operations.
• Monitor Usage: Use SQL Server’s sys.dm_db_index_usage_stats to track index usage and identify unused indexes.
• Rebuild and Reorganize: Regularly rebuild or reorganize fragmented indexes to maintain performance.
• Covering Index: Use included columns in non-clustered indexes to create "covering indexes" that reduce lookups.

Indexes, when used strategically, significantly enhance query performance but require careful planning and maintenance to avoid performance degradation.
